①Exterior Assembly

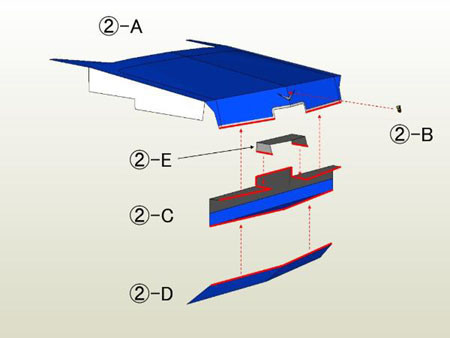

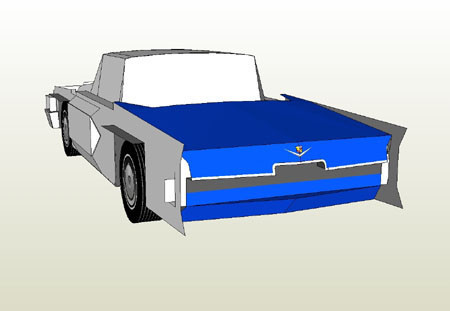

From here, use the "B part". Assemble around the rear trunk.

②-B is a very small part so, please be careful.

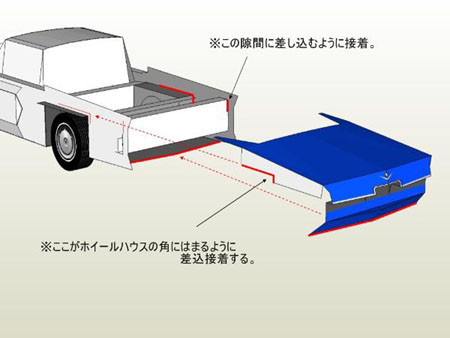

Inserting the glue between both parts of the body reinforcement.




Did you like this?

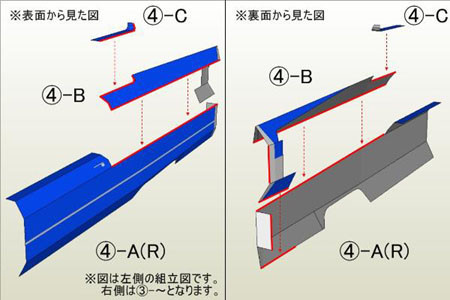

The figure illustrates an example of body parts attached to the left.(Assemble the right side as well.)

If necessary, please add a margin to make it easier to produce a piece of paper, etc..

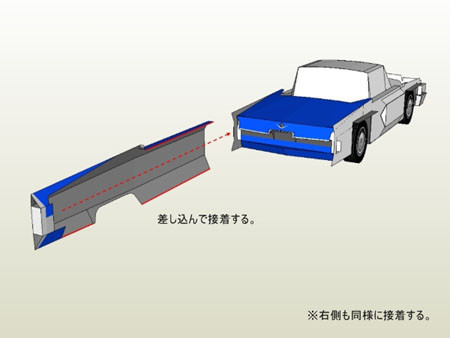

Into the side of the reinforced section.The assembly diagram for the example of the left, is described.

The same is true on the right.

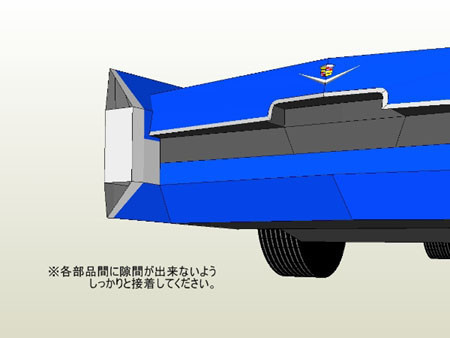

The gap between the parts can not be made, please insert the firm.

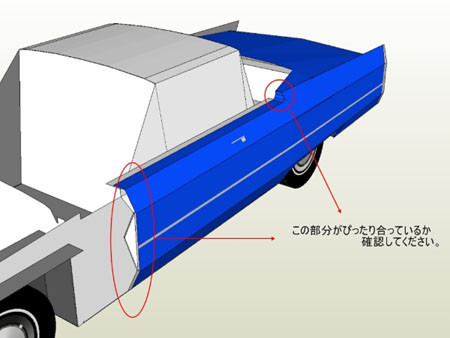

The checkpoint is part of the illustrated.Must be firmly aligned here.




For when you assemble the roof and glue the parts guide.

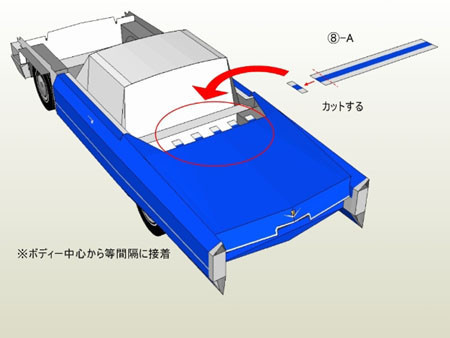

⑧-A cut to the appropriate width, relative to the center line of the trunk, we adhered to at regular intervals.

Bonded to the roof as well put together guide it, then engage each other like when assembled.
